Helicon X3 P&T Control System User Manual
Language: English
Author: Rolls-Royce
Genre: Manual, Operating and Maintenance Instructions, User manual
Publisher: Rolls-Royce plc
Format: PDF
Quality: eBook
Pages count: 140
Description: The purpose of the Helicon X3 User Manual is to provide the necessary information to plan and perform a safe and correct operation of the installed delivered system, as well as under-standing the basic functionality of the equipment. The User Manual covers both operational and technical aspects of the system.
The Helicon X3 remote control system is a micro-processor-based system, controlling the propulsion units on the vessel. The following main functions are included:
• Combinator control, allowing accurate and reliable control of the propeller pitch and motor speed (RPM). The combinator curve optimises the pitch/speed performance to give the best operational conditions and fuel economy.
• Pitch control, allowing accurate and reliable control of the thruster pitch.
• Speed control, allowing accurate and reliable control of the motor speed (RPM).
• Direction control, allowing accurate and reliable control of the thrust direction.
• Follow-up backup control from control levers.

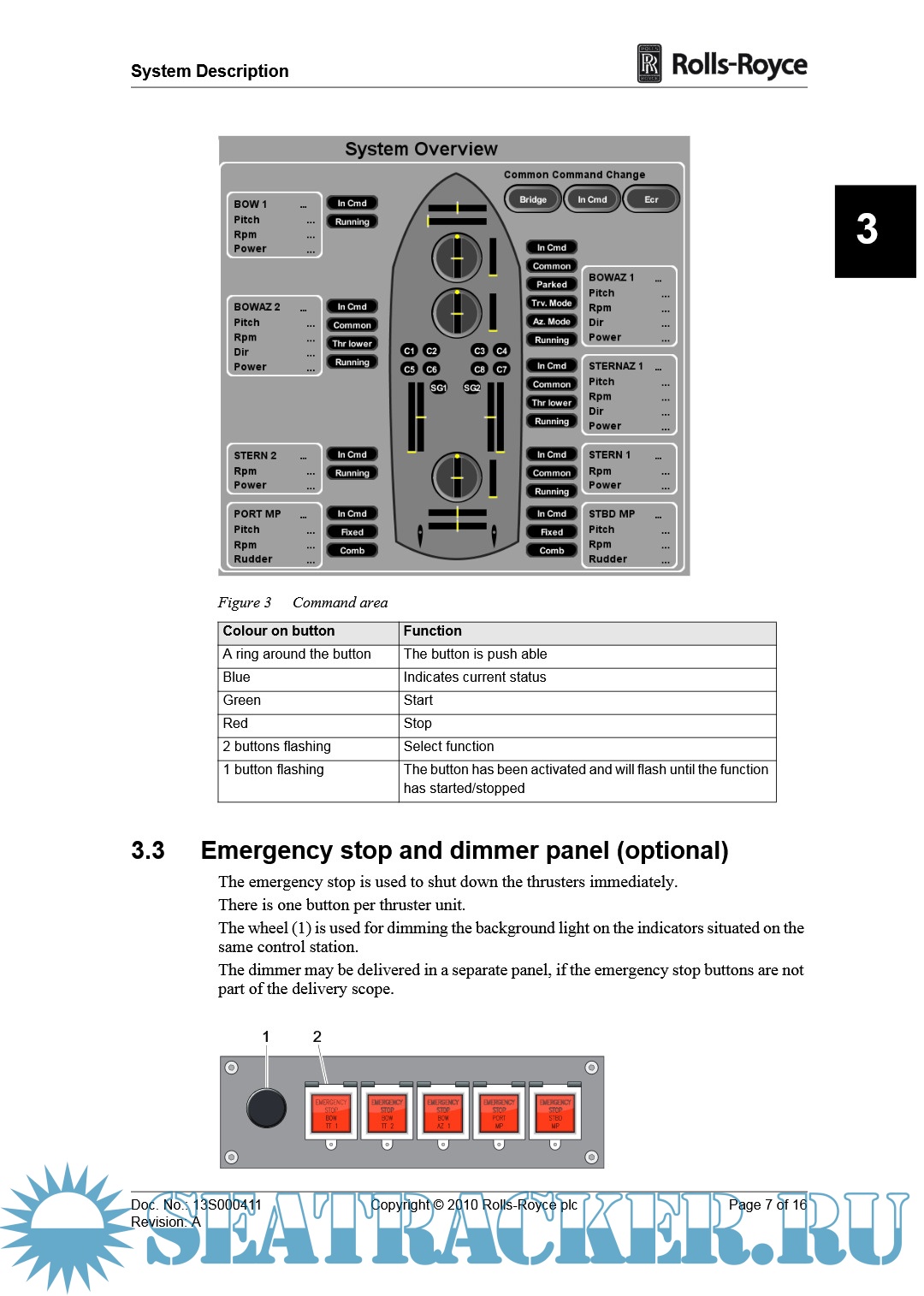

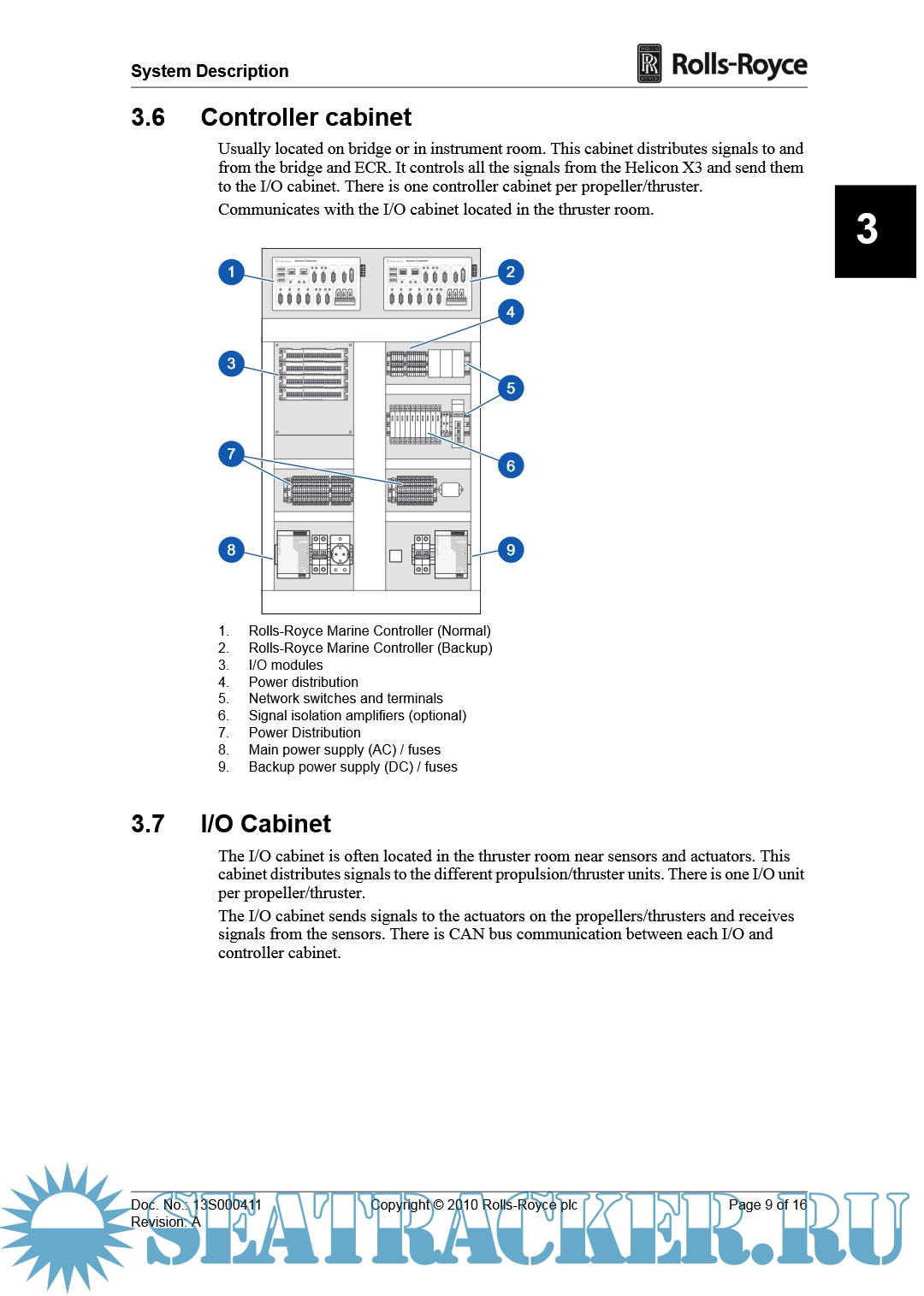

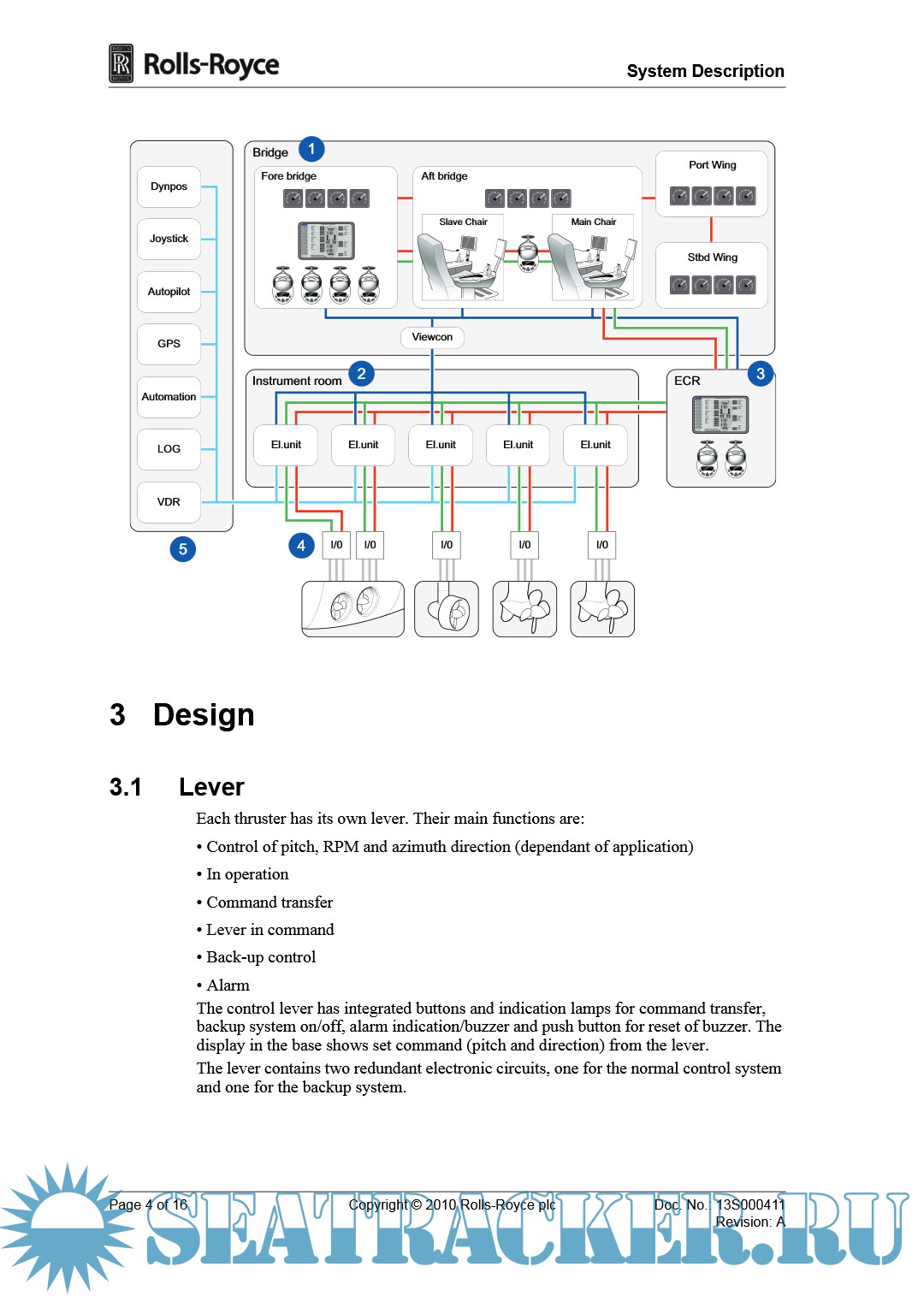

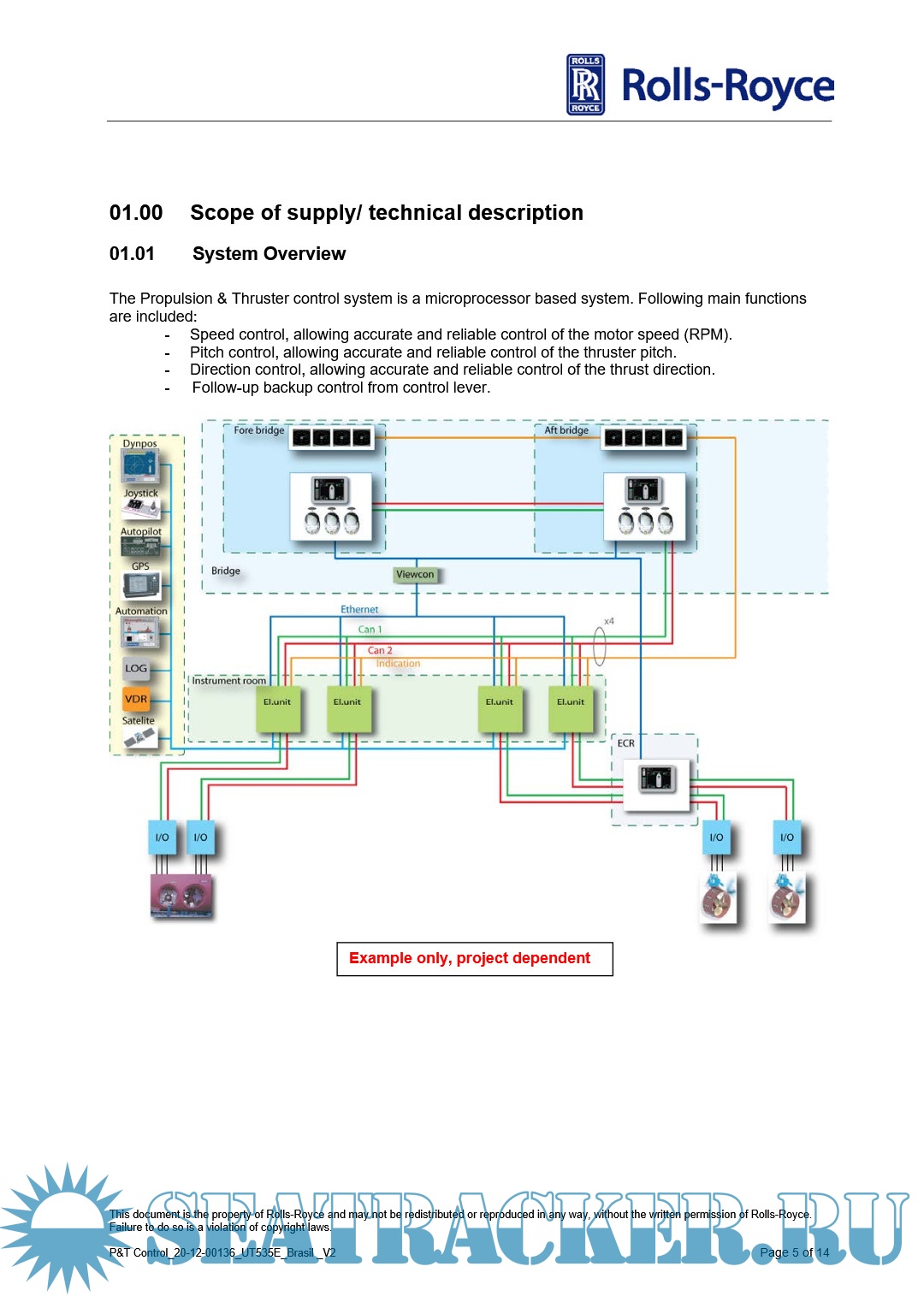

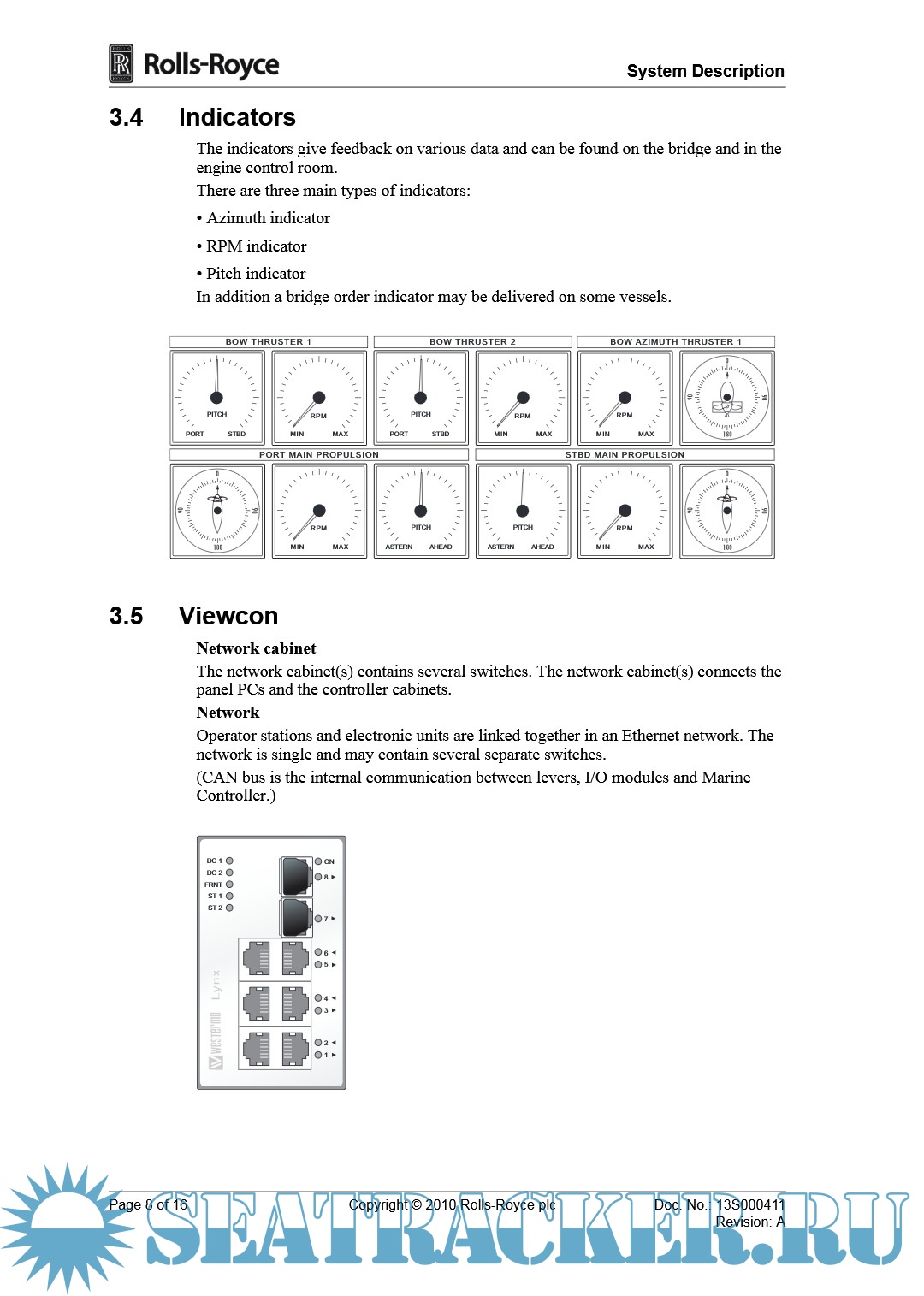

Helicon X3 consists of the following main components:
• Instruments, screens, levers and Viewcon on the bridge.
• Electrical cabinets in the instrument room and thruster room.
• Instruments, screens and levers in the engine control room.
Helicon X3 may interface several external systems, like Dynamic positioning systems and Autopilots.

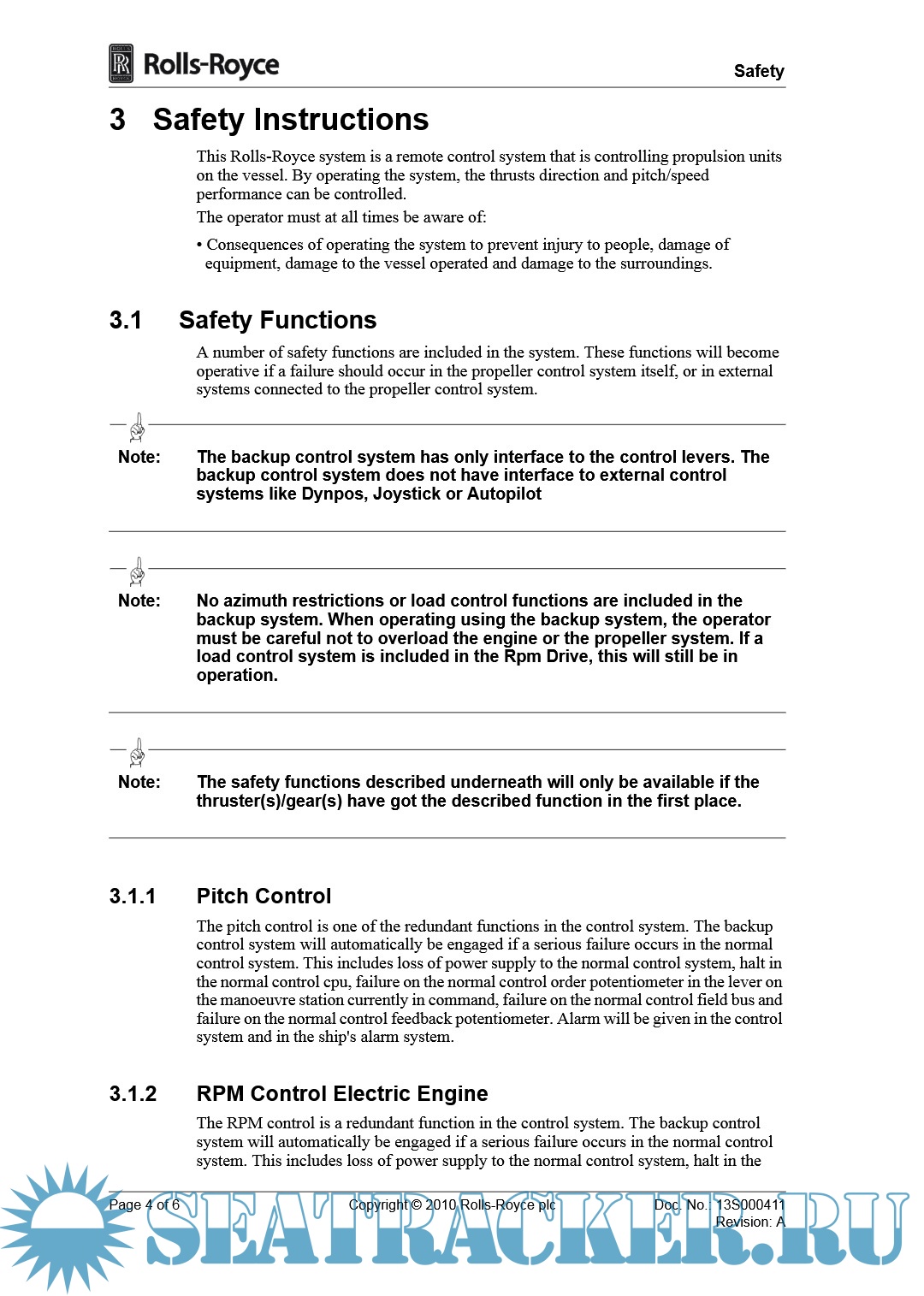

A number of safety functions are included in the system. These functions will become operative if a failure should occur in the propeller control system itself, or in external systems connected to the propeller control system.
